01
Check individual axle loads
See how the load is distributed instead of relying only on a gross vehicle weight.
TRUCK AXLE WEIGHERS · NEW ZEALAND
Know every axle.
Know the total.
Portable and in-ground axle weighers for trucks and heavy vehicles — from simple static axle checks to low-speed weigh-in-motion, software and connected site reporting.
Static + WIMsystems to suit the application
NZ-wideengineering, installation & support
Connectedin-cab software & reporting
AXLE WEIGHING WITHOUT A FULL-LENGTH WEIGHBRIDGE
Truck weighing where space, portability or axle loading matters.
Axle weighers measure a vehicle progressively rather than requiring the entire truck to sit on one long deck. That makes them well suited to fleet checks, quarries, civil sites, forestry, agriculture, transport yards and locations where a conventional weighbridge is difficult to justify.
02

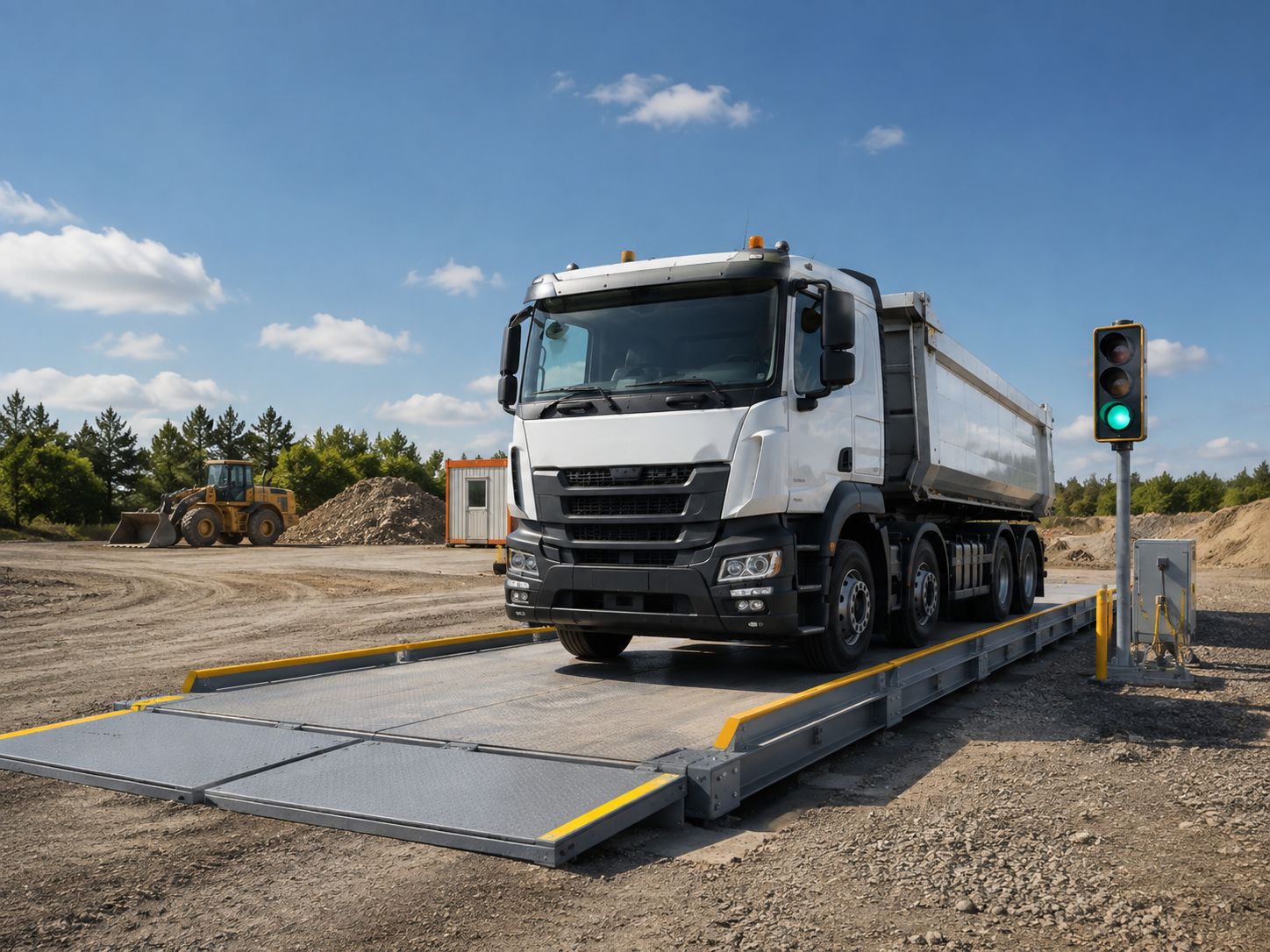

Total the vehicle weight
Record successive axle weights and total them into a complete vehicle result.
03
Reduce civil footprint
Choose portable pads or a compact in-ground platform when a full weighbridge is unnecessary.
04

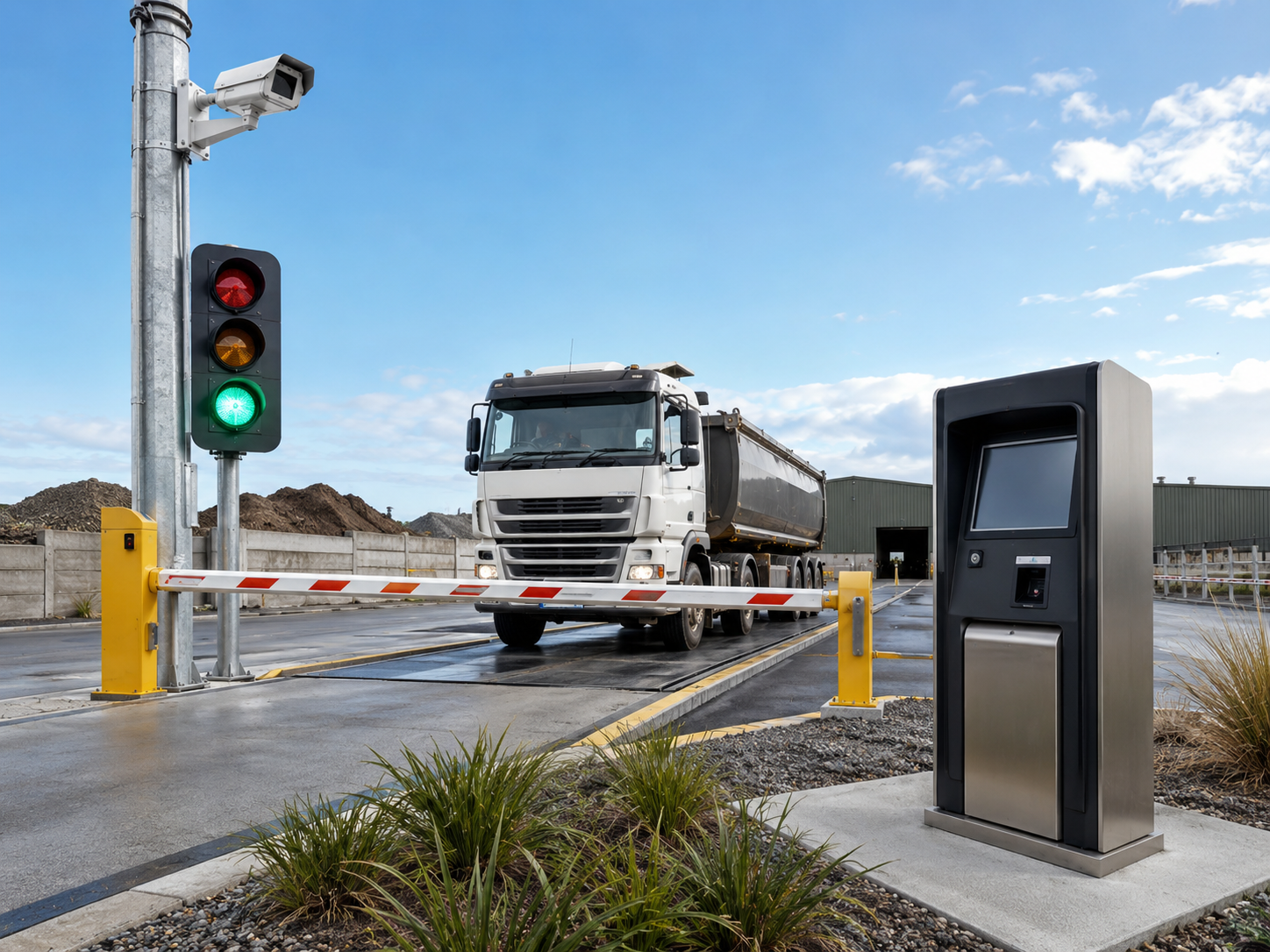

Connect the data
Send weight records into driver workflows, printers, local files, dashboards or cloud reporting.
AXLE WEIGHER OPTIONS
Choose the system around the way your trucks move.
We do not force one axle scale into every job. The right configuration depends on vehicle size, axle loads, traffic volume, speed, accuracy requirements, portability and the site surface.
PORTABLE

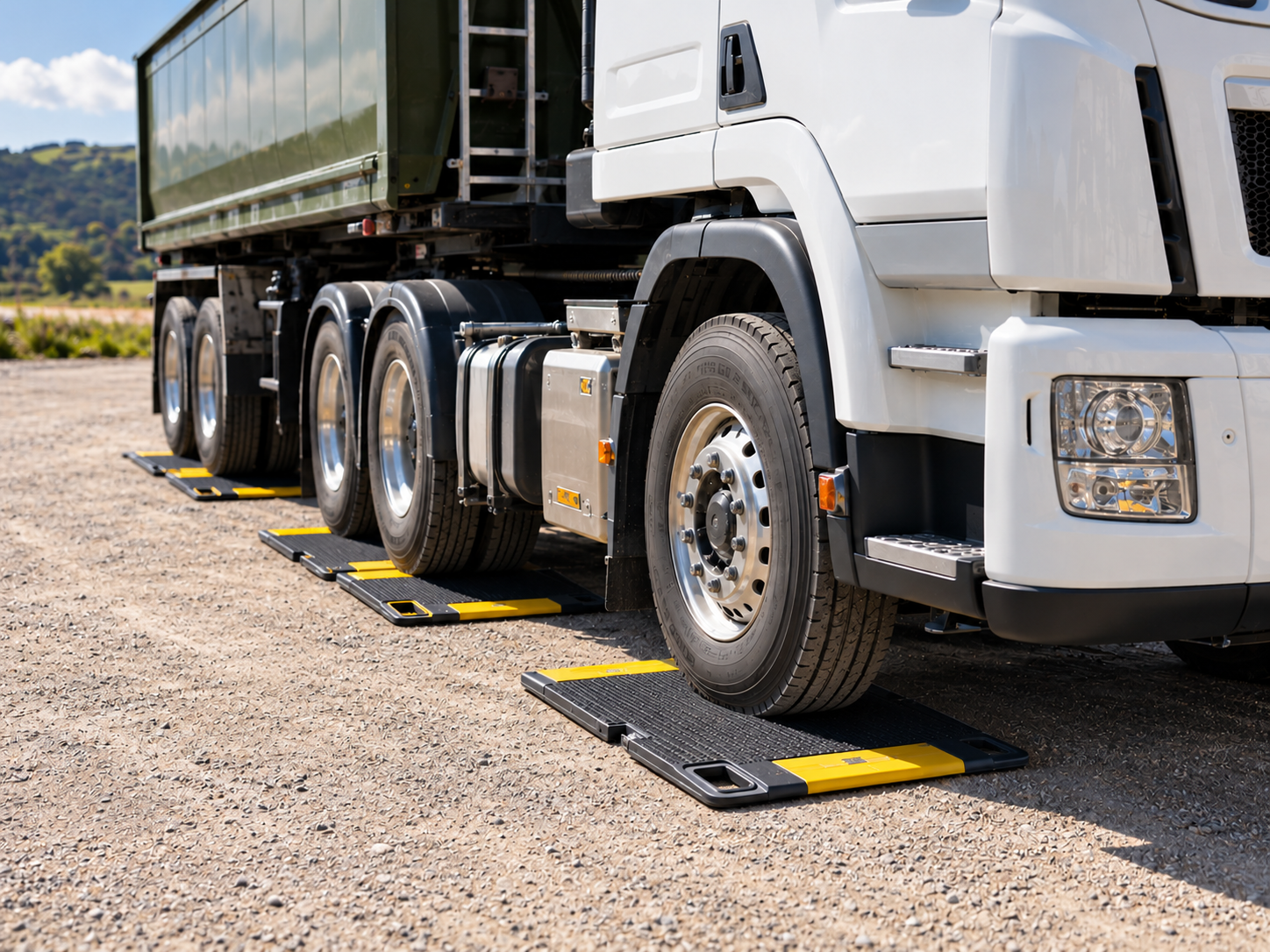

Portable Axle Weighers
Low-profile wheel or axle weighing pads for temporary sites, fleet checks and applications where the weighing point needs to move.
- Fast deployment
- Individual axle and vehicle totals
- Wired or wireless options
- Minimal permanent civil work
FIXED

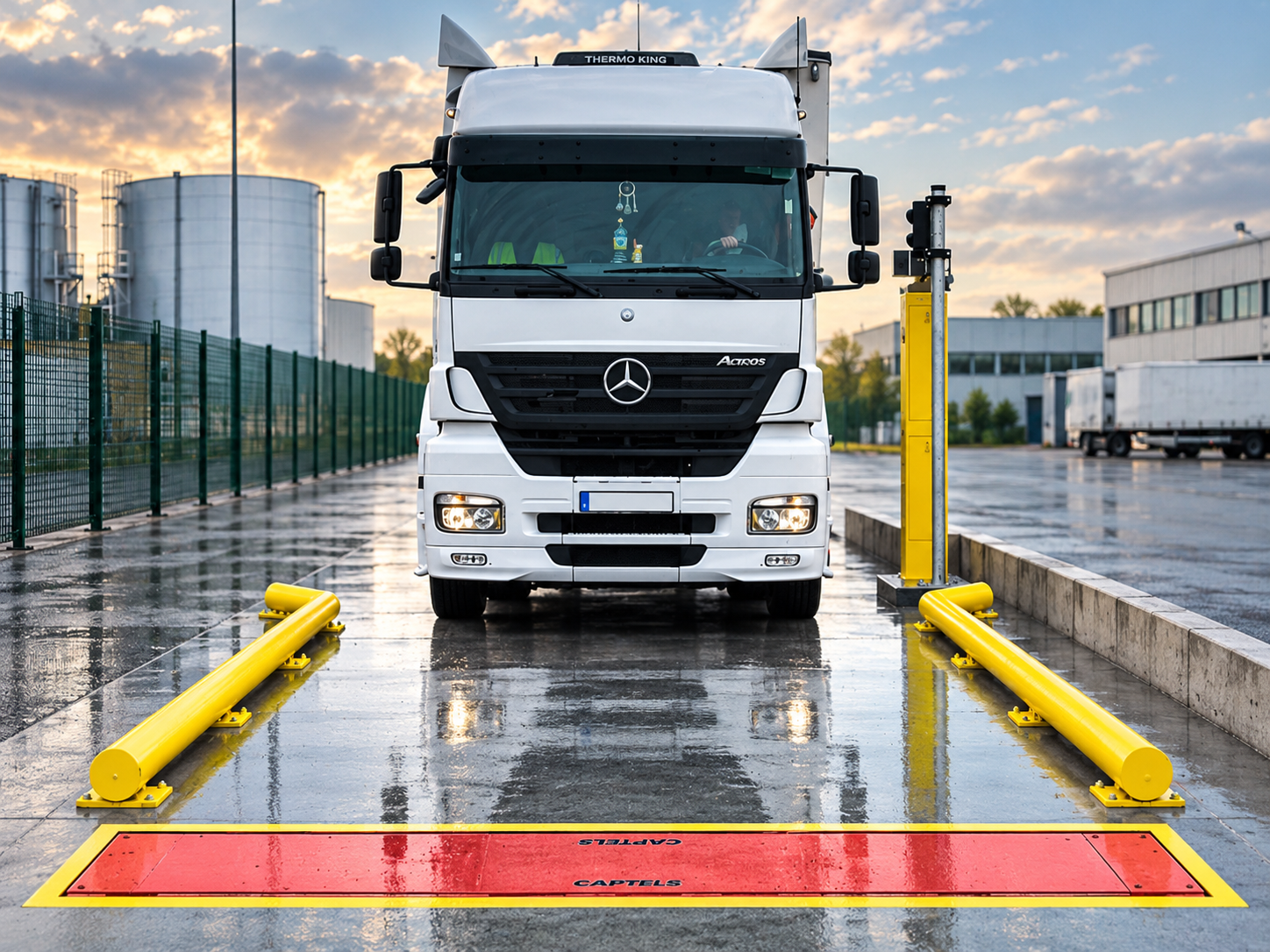

In-Ground Axle Weighers
A compact fixed platform set into a prepared lane for regular truck weighing, with clean approaches and repeatable vehicle positioning.
- Small site footprint
- Ideal for repeat traffic
- Static or dynamic configurations
- Integrates with site controls
DYNAMIC

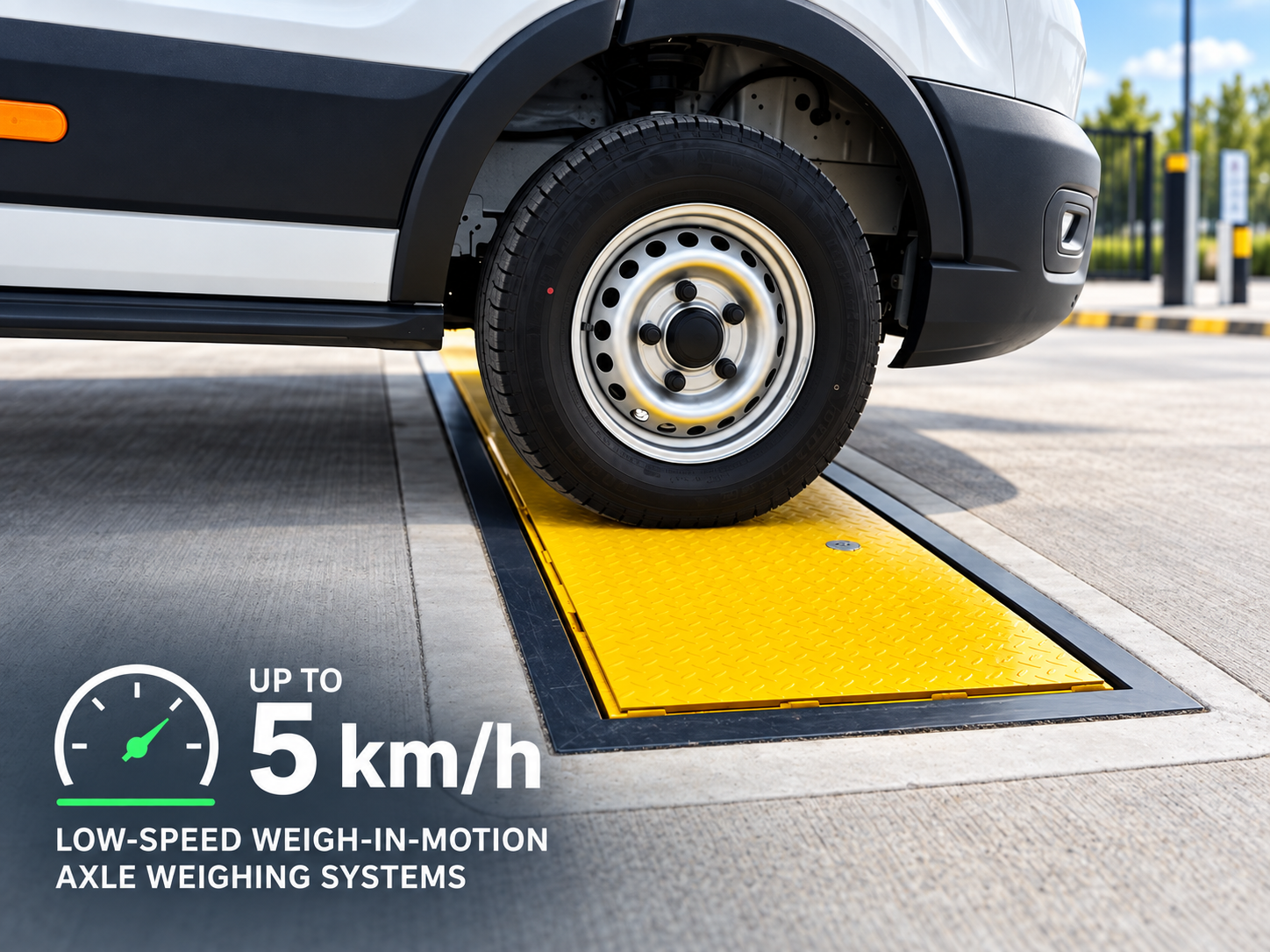

Weigh-In-Motion Axle Systems
Keep trucks moving at controlled low speed while the system captures successive axle weights and builds the vehicle result.
- Faster throughput
- No stop-start axle sequence
- Automatic axle capture
- Software and data integration
HOW AXLE WEIGHING WORKS
One axle at a time. One complete vehicle record.
The vehicle crosses the weighing point in a controlled sequence. The system captures each axle, adds the readings, and can pass the final result to your chosen display, printer or software workflow.
1ApproachTruck aligns on a suitably prepared, level weighing lane.
2CaptureEach axle is weighed statically or as it moves over a dynamic platform.
3TotalAxle results are recorded and combined into the vehicle weight.
4Use the dataDisplay, print, save, email or integrate the weight record.
GET THE SITE RIGHT
Axle weighing accuracy starts before the load cell.
Axle systems perform best when the vehicle is supported on a suitably level approach and the weighing platform is installed and used correctly. For dynamic systems, lane geometry, speed control and approach condition become part of the measurement system—not an afterthought.
Level vehicle approach
Correct platform width & capacity
Controlled vehicle positioning or speed
Suitable foundations or pad support
Calibration and verification to suit the intended use
MAKE THE AXLE WEIGHER SMARTER

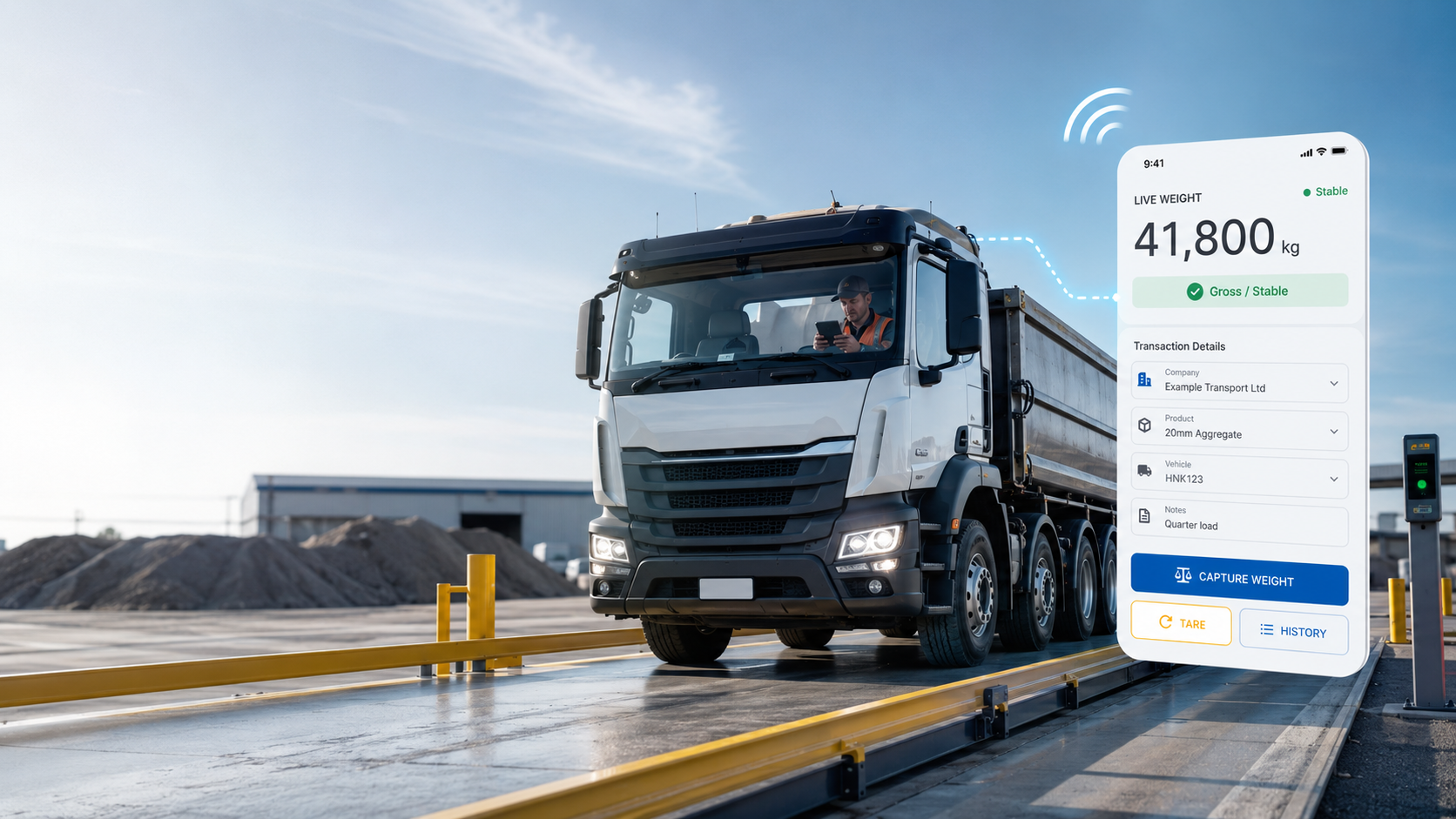

Add Weighbridges NZ In-Cab Weighing.
Turn the axle scale into a guided driver workflow. The driver can stay in the cab while the system identifies the vehicle, steps through the axle sequence, displays live weight information and creates the completed record.
01
Driver-guided weighingPIN, vehicle, company, product or job selection from a phone or tablet.
02
Axle-by-axle workflowPrompt the driver through each axle and build the total automatically.
03
Connected recordsDockets, email, CSV/API output, photos, reporting and site integration.
Stay in the cabSafer driver workflow
One digital recordAxles + total + job data
BUILT FOR HEAVY VEHICLE OPERATIONS
Where axle weighers earn their keep.
Quarries & AggregatesCheck payload and axle distribution before dispatch.
Transport & LogisticsFleet weight checks without tying up a full weighbridge.
Civil & ConstructionPortable weighing for temporary or changing work sites.
Waste & RecyclingCompact vehicle weighing and overload management.
Agriculture & ForestryVehicle loading checks in demanding regional environments.
ManufacturingOutbound weight control and connected production records.
AXLE WEIGHER FAQ
Questions we are normally asked first.
What is an axle weigher?
An axle weigher is a vehicle scale that measures the load carried by individual axles or axle groups. Successive readings can be added to produce a total vehicle weight.
Static axle weighing or weigh-in-motion?
Static weighing normally prioritises controlled positioning and accuracy; low-speed weigh-in-motion prioritises throughput by capturing axles as the truck crosses the scale. We select the approach around your operational and accuracy requirements.
Can I use an axle weigher instead of a weighbridge?
Often, yes—for operational weight checks, axle-load monitoring or sites with limited space. A full weighbridge may still be the better choice where whole-vehicle static weighing, trade use or very high traffic volumes drive the requirement.
Does the ground need to be level?
Yes. Vehicle attitude affects axle load transfer. Correctly prepared, reasonably level approaches are an important part of obtaining repeatable axle-weight results, particularly where only part of the vehicle is on the weighing platform.
Can the system print or save each axle?
Yes. Depending on the indicator and software, systems can display, total, print and electronically store individual axle readings and the completed vehicle result.
Can it work with driver phones or tablets?
Yes. Our In-Cab Weighing platform can guide the driver through the weighing process and link the weight result with vehicle, company, product or job information.
80+
WHY WEIGHBRIDGES NZ
Experienced weighing engineers, not just a scale in a box.
We combine weighing hardware, site engineering, controls and software so the finished axle-weighing system fits the operation around it.
NZ-wide supportHardware + software integrationStatic + dynamic optionsExisting-site upgrades
REQUEST AN AXLE WEIGHER QUOTE
Tell us about the trucks and the site.
Send us the largest vehicle, expected axle load, site location, whether the unit needs to be portable or fixed, and how you want to use the weight data. We will help narrow down the right system.
